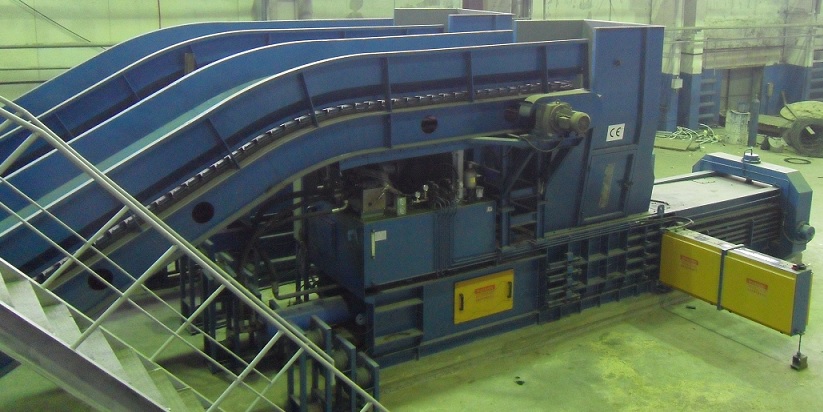

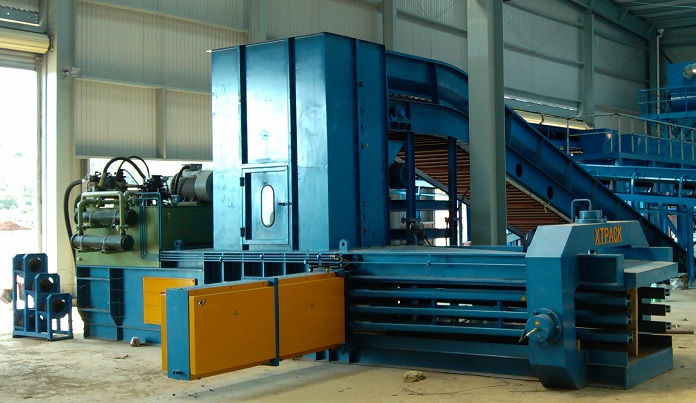

- Large-sized Full Automatic Balers
-
¡¡
Usage

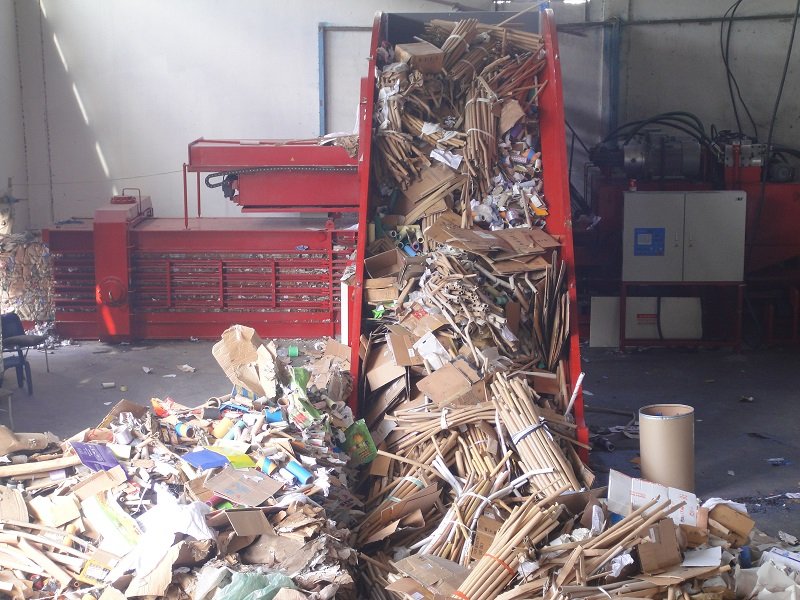

Specialized in recycling and compressing the loose materials like waste paper, cardboards, cartons, waste books, magazines, plastic film, natural fiber and straw etc. with high production. Adjustable bales length and bales quantity accumulating function ensure conveniently operation.. Scatter is optional for scattering newspaper, books and magazines when they are conveyed into the chamber.Features
¡ñ¡¡ Photoelectric switch activates baler when charge box is full
¡ñ¡¡ Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters
¡ñ¡¡ Particular anti-slide design of the machine makes nicer bales
¡ñ¡¡ Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
¡ñ¡¡ Equipped with rapid automatic tying system, easy for cleaning and maintaining
¡ñ¡¡ Use differential technique for the hydraulic system, makes shorter cycle time so that improve the working efficiency and save electricity
¡ñ¡¡ Automatic tension system ensures ¡°brick-like¡± bales on all loose materials
¡ñ¡¡ Adjustable bales length and bales quantity accumulating function make the operation of the machine more convenient
¡ñ¡¡ Automatically detect and show the errors of the machine which improve the machine inspection efficiency
¡ñ¡¡ International standard electric circuit layout, graphic operation instruction and detailed parts marks makes the operation been more easily understanding and improves the maintenance efficiency
¡ñ¡¡ The press heads are specially processed by planomiller, ensures the precise running of the ram
¡ñ¡¡ Use high quality hydraulic system from Taiwan, ensures the stable running of the machine
¡ñ¡¡ The heavy duty machine body makes sure only flat ground is required by the installationSpecifications
Model XTY-1000W11080-60 XTY-1000W11080L-60 XTY-1000W110110-60 XTY-1000W110110L-60 Pressure 100tons 100tons 100tons 100tons Main Motor Power 45kw 45kw 45kw 45kw Cooling System air cooler / water cooler air cooler / water cooler air cooler / water cooler air cooler / water cooler < Cycle Time (unload)
14s 16s 14s 16s Oil Reservoir 1600L 1600L 1600L 1600L Number of Belting 4lines 4lines 5lines 5lines Wire Size Ø3.0-3.2 Ø3.0-3.2 Ø3.0-3.2 Ø3.0-3.2 Feed Opening Size (L*W) 1600*1050mm 1800*1050mm 1600*1050mm 1800*1050mm Chamber Size (L*W*H) 2100*1100*800mm 2400*1100*800mm 2100*1100*1100mm 2400*1100*1100mm Bale Size (L*W*H, L is adjustable) L*1100*800mm L*1100*800mm L*1100*1100mm L*1100*1100mm Bale Density £¨OCC£© 450-550kgs/m3 450-550kgs/m3 450-550kgs/m3 450-550kgs/m3 Throughput (30-60kgs/m3) 5-9tons/h 5-10tons/h 6-11tons/h 6-12tons/h Machine Weight 15tons 16tons 17tons 18tons Machine Overall Dimension 8500*4000*4200mm 9100*4000*4200mm 8700*4000*4200mm 9300*4000*4200mm Feeding Device Conveyor Conveyor Conveyor Conveyor Conveyor Feeding Width 1600mm 1800mm 1800mm 1600mm Speed 12m/min 12m/min 12m/min 12m/min Power 7.5KW 7.5KW 7.5KW 7.5KW Weight 6tons 7tons 6tons 7tons Overall Dimension 11000*2100*5200mm 11000*2300*5200mm 11000*2100*5200mm 11000*2300*5200mm Scatter (Used for the machines that compress the newspaper) Motor 11KW Model XTY-1250W110110-75 XTY-1250W110110L-75 XTY-1250W110125-75 XTY-1250W110125L-75 Pressure 125tons 125tons 125tons 125tons Main Motor Power 55kw 55kw 55kw 55kw Cycle Time (unload)
15s 17s 15s 17s Oil Reservoir 1900L 1900L 1900L 1900L Number of Belting 5lines 5lines 5lines 5lines Wire Size Ø3.0-3.4 Ø3.0-3.4 Ø3.0-3.4 Ø3.0-3.4 Feed Opening Size (L*W 1600*1050mm 1800*1050mm 1600*1050mm 1800*1050mm Chamber Size (L*W*H) 2100*1100*1100mm 2400*1100*1100mm 2100*1100*1250mm 2400*1100*1250mm Bale Size (L*W*H, L can be adjustable) L*1100*1100mm L*1100*1100mm L*1100*1250mm L*1100*1250mm Bale Density (OCC) 400-500kgs/m3 400-500kgs/m3 400-500kgs/m3 400-500kgs/m3 Throughput( (30-60kgs/m3£© 7-13tons/h 7-14tons/h 8-15tons/h 8-16tons/h Machine Weight 19tons 20tons 21tons 22tons Machine Overall Dimension 9000*4100*4200mm 9600*4100*4200mm 9000*4100*4200mm 9600*4100*4200mm Feeding Device Conveyor Conveyor Conveyor Conveyor Conveyor Feeding Width 1600mm 1800mm 1800mm 1600mm Speed 12m/min 12m/min 12m/min 12m/min Power 7.5KW 7.5KW 7.5KW 7.5KW Weight 6tons 7tons 6tons 7tons Overall Dimension 11000*2100*5200mm 11000*2300*5200mm 11000*2100*5200mm 11000*2300*5200mm Scatter (Used for the machines that compress the newspaper) Motor 11KW Model XTY-1500W110110-150 XTY-1500W110125-150 XTY-1500W110110L-180 XTY-1500W110125L-180 Pressure 150tons 150tons 150tons 150tons Main Motor Power 55kw*2 55kw*2 45kw*3 45kw*3 Cooling System water cooler water cooler water cooler water cooler Cycle Time (unload)
12s 12s 11s 11s Oil Reservoir 2600L 2600L 3500L 3500L Number of Belting 5lines 5lines 5lines 5lines Wire Size Ø3.4-3.6 Ø3.4-3.6 Ø3.4-3.6 Ø3.4-3.6 Feed Opening Size (L*W) 2000*1050mm 2000*1050mm 2200*1050mm 2200*1050mm Chamber Size (L*W*H) 2600*1100*1100mm 2600*1100*1250mm 2800*1100*1100mm 2800*1100*1250mm Bale Size (L*W*H, L can be adjustable) L*1100*11000mm L*1100*250mm L*1100*1100mm L*1100*1250mm Bale Density (OCC) 550-600kgs/m3 550-600kgs/m3 550-600kgs/m3 550-600kgs/m3 Throughput (30-60kgs/m3£© 15-20tons/h 17-25tons/h 19-28tons/h 20-30tons/h Machine Weight 30tons 32tons 34tons 35tons Machine Overall Dimension 11600*4200*6000mm 11600*4200*6000mm 12000*4200*6000mm 12000*4200*6000mm Feeding Device Conveyor Conveyor Conveyor Conveyor Conveyor Feeding Width 2000mm 2000mm 2200mm 2200mm Speed 12m/min 0-12m/min 0-12m/min 0-12m/min Power 11KW 11KW 11KW 11KW Weight 14tons 14tons 14tons 14tons Overall Dimension< /td> 18000*2500*7200mm 18000*2500*7200mm 18000*2500*7200mm 18000*2500*7200mm Scatter (Used for the machines that compress the newspaper) Motor 15KW
 |
 |
  |
