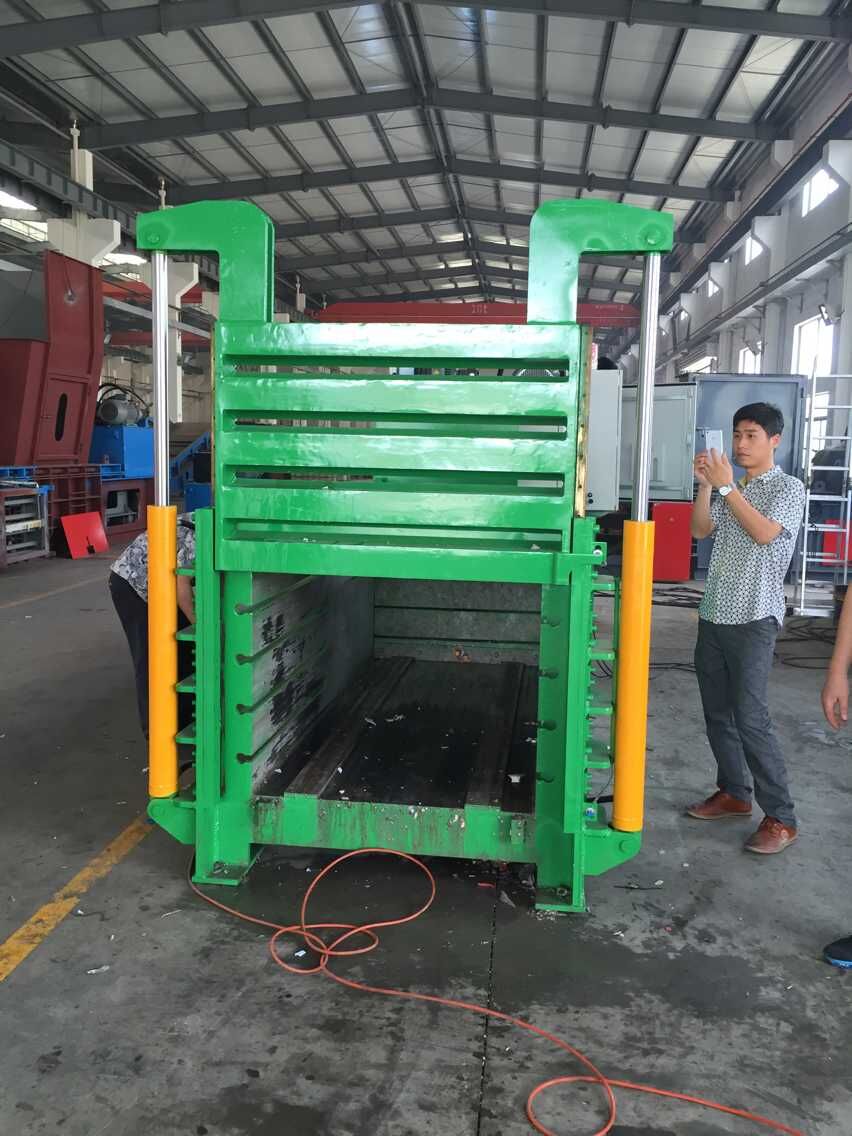

- Medium-sized Semi Automatic Balers with Closed Gate
-
¡¡
Usage
Specialized in compressing plastic film, plastic scraps, waste paper, cartons, cardboards trims/scraps, etc.Features
¡ñ¡¡ Heavy duty close-gate design for more tighter bales
¡ñ¡¡ Hydraulic locked gate ensures more convenient operation
¡ñ¡¡ Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters
¡ñ¡¡ Particular anti-slide design of the machine makes nicer bales
¡ñ¡¡ Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
¡ñ¡¡ The press heads are specially processed by planomiller, ensures the precise running of the ram
¡ñ¡¡ Use high quality hydraulic valves from Taiwan, ensures the stable running of the machine
¡ñ¡¡ The heavy duty machine body makes sure only flat ground is required by the installationSpecifications
Model XTY-300WB7070 XTY-400WB7280 XTY-600WB10080 Main Motor Power 11kw 11kw 15kw Cooling System N/A N/A N/A Cycle Time (unload) 27s 19s 23s Oil Reservoir 240L 240L 350L Number of Belting 3lines 4lines 4lines Wire Size Ø2.4-2.7 Ø2.4-2.7 Ø2.7-3.0 Feed Opening Size (L*W) 700*690mm 1000*700mm 1200*980mm Chamber Size (L*W*H) 1700*690*690mm 2200*700*780mm 2400*980*780mm Bale Size (L*W*H) 900*700*700mm 1000*720*800mm 1000*1000*800mm Bale Density (OCC) 400-500kgs/m3 400-500kgs/m3 450-550kgs/m3 Throughput (approx./ depend on the raw material density and the skill of the operators) 0.5-1ton/h 0.5-1ton/h 1-2tons/h Machine Weight 4tons 4tons 5.2tons Machine Overall Dimension 4200*1100*1900mm 5500*1100*2000mm 5700*1800*2400mm Feeding Device cyclone / conveyor cyclone / conveyor cyclone / conveyor Conveyor Feeding Width 1400mm 1400mm 1600mm Speed 12m/min 12m/min 12m/min Power 5.5KW 5.5KW 5.5KW Weight 4.5tons 4.5tons 5tons Overall Dimension 9000*1900*4200mm 9000*1900*4200mm 9000*2100*4200mm
 |
 |
  |
