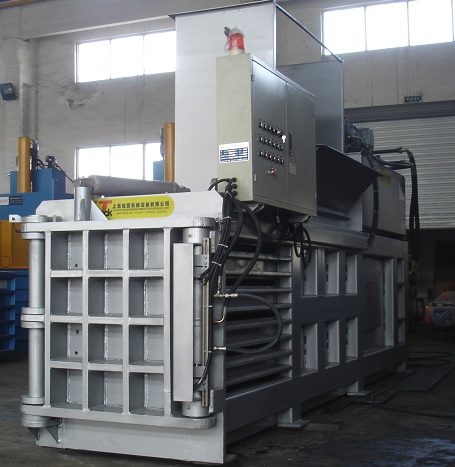

- Large-sized Semi Automatic Balers with Closed Gate
-
¡¡
Usage
Specialized in recycling and compressing the loose materials like plastic film, PET bottles, plastic pallets waste paper, cartons, cardboards trims/scraps, etc.Features
¡ñ¡¡ Heavy duty close-gate design for more tighter bales
¡ñ¡¡ Hydraulic locked gate ensures more convenient operation
¡ñ¡¡ Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters
¡ñ¡¡ Particular anti-slide design of the machine makes nicer bales
¡ñ¡¡ Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
¡ñ¡¡ The press heads are specially processed by planomiller, ensures the precise running of the ram
¡ñ¡¡ Use high quality hydraulic valves from Taiwan, ensures the stable running of the machine
¡ñ¡¡ The heavy duty machine body makes sure only flat ground is required by the installationSpecifications
Model XTY-1000WB11085 XTY-1000WB110110 Pressure 100tons 100tons Main Motor Power 30kw 30kw Cooling System air cooler / water cooler air cooler / water cooler Cycle Time (unload) 36s 42s Oil Reservoir 1460L 1600L Number of Belting 4lines 5lines Wire Size Ø3.0-3.2 Ø3.0-3.2 Feed Opening Size (L*W) 1400*1050mm 1800*1050mm Chamber Size (L*W*H) 3000*1050*830mm 3700*1050*1050mm Bale Size (L*W*H) 1300*1100*850mm 1600*1100*1100mm Bale Density (OCC) 500-600kgs/m3 500-600kgs/m3 Throughput (approx./ depend on the raw material density, strapping skill and material feeding speed) 1.5-3tons/h 2-6tons/h Machine Weight 12tons 18tons Machine Overall Dimension 7450*1600*2300mm 8200*1600*3500mm Feeding Device Conveyor Conveyor Conveyor Feeding Width 1600mm 1800mm Speed 12m/min 12m/min Power 5.5KW 7.5KW Weight 5tons 7tons Overall Dimension 9000*2100*4200mm 9500*2200*4200mm
 |
 |
  |
