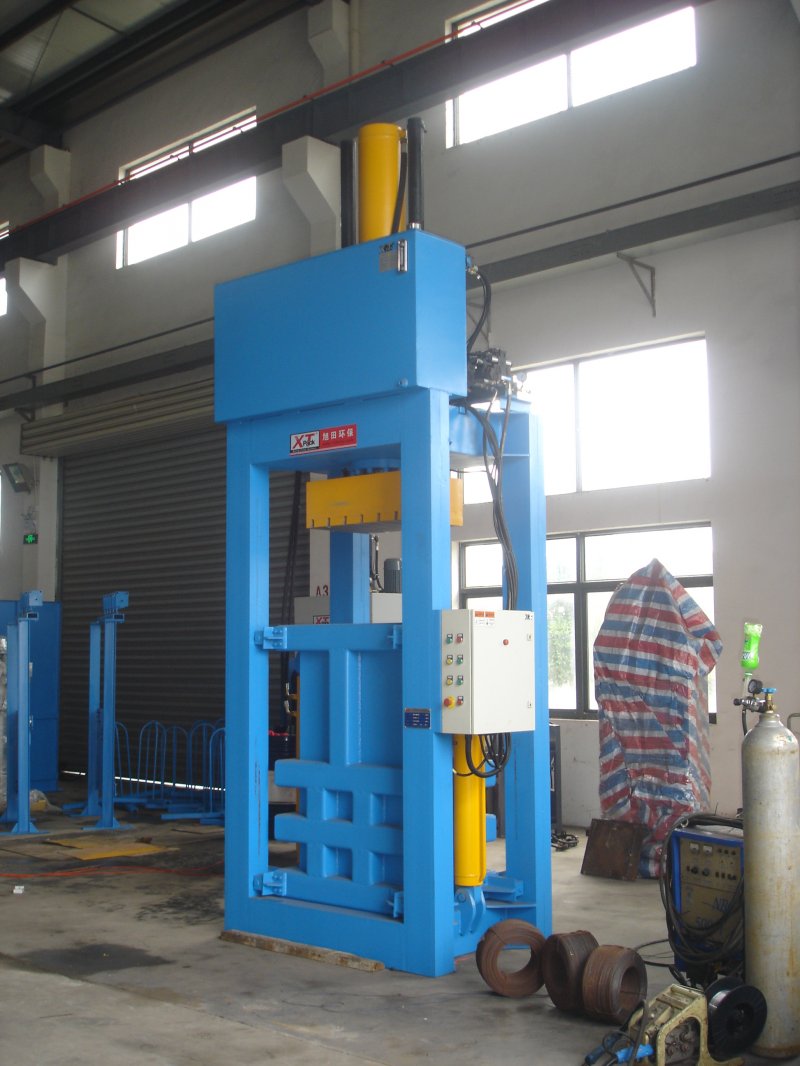

- Vertical Cotton Baler
-
¡¡
Usage
Widely applied for compressing the cotton in the cotton recycling factory.Features
¡ñ¡¡Hydraulic lifting chamber door improves the work efficiency, conveniently for packaging and the ¡®# ¡®tying
¡ñ¡¡The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
¡ñ Equipped with independent emergency stop for safe operation
¡ñ Special ram guides design makes the platen not slope because of uneven materials feedings during compression
¡ñ Equipped with NOK seals that from Japan means longer lifespan of the seals
¡ñ Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
¡ñ Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pumpSpecifications
Model XTY-1500LTX11080 Pressure 150tons Feed Opening Size(L*H) 1100*600mm Baling Chamber Height 1800mm Bale Size(L*W*H,H is adjustable) 1100*800*(600-9000)mm Bale Weight 300-400kgs Power 18.5kw Machine Weight 6000kgs Machine Overall Dimension 1800*1000*3950mm
 |
 |
  |
